Airmax® to the Rescue!

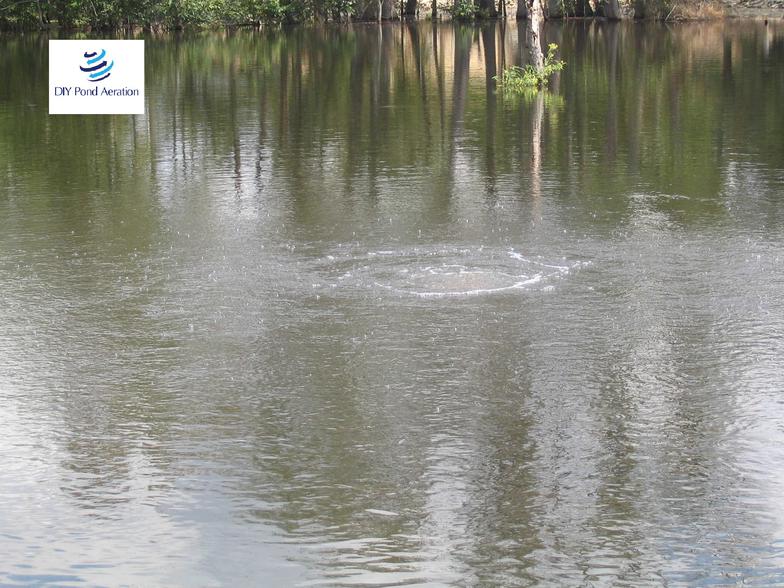

Airmax Aeration Systems utilize a shore-mounted air pump that delivers air to specialized diffuser plates that are located on the pond bottom. The resulting column of rising bubbles circulates water throughout the pond, eliminating the thermocline. With a fresh supply of oxygen, natural bacteria and phytoplankton go to work in the water column as well as on the bottom. Any excess nutrients in the system are metabolized, resulting in cleaner, clearer water and less muck. Results you can see in just 90 days!

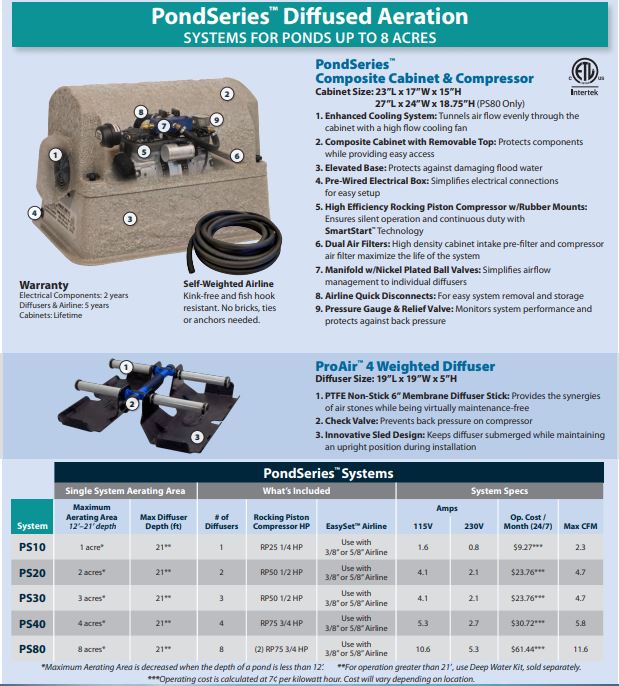

The PondSeries™ Aeration Systems by Airmax are powerful enough to aerate ponds up to 4 acres and can be adapted to fit uniquely shaped ponds for maximum aeration. Diverse PondSeries™ systems make aeration a breeze. Our single plate PS10 system is excellent for smaller or regularly shaped ponds while the 4 plate PS40 tackles larger water bodies up to 4 acres, or ponds with an irregular shape that require precision plate placement for even circulation.
Airmax SW20 Pond Aeration Systems
For ponds .5 up to 1/5 acres. Airmax SW20 Pond Aeration Systems provide multiple plates to provide evenly distributed aeration in shallow water applications.
Airmax SW20 Pond Aeration System – 100 ft. Airline (600802) $1,424.99

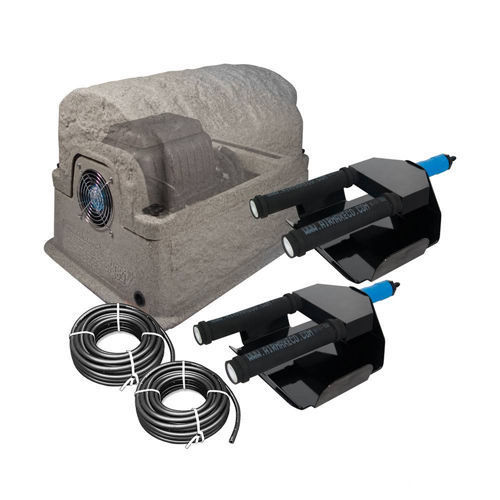

This kit comes complete with faux rock cabinet ( with cooling fan )
100' of self sink air line and 2 diffuser bases.
Airmax SW20 Pond Aeration System – 200 ft. Airline (600803) $1,549.99
Same kit as above but this one has 200' of weighted tubing.
Providing bottom-diffused aeration in shallow ponds and lakes can provide a unique challenge to pond owners. Less water depth means smaller plate coverage which usually translates to bigger, more expensive, multi-plate systems. Airmax SW20 Pond Aeration Systems provide multiple plates to provide evenly distributed aeration in shallow water applications. Designed specifically for use in shallow water, Airmax SW20 Pond Aeration Systems aerate ponds up to 1+ surface acre at 16 ft. deep.
Key Features
•SilentAir™ Standard Composite Cabinet
Our attractive composite cabinet houses and protects the SilentAir™ Compressor from outdoor elements – an integrated cooling system utilizes a UL-listed high-flow cooling fan and high-density air intake pre-filter to distribute air evenly throughout the cabinet keeping the interior components clean, cool and dry – an elevated base protects the aeration hardware and electrical components from flooding and rainwater accumulation while the removable top ensures quick and easy access for inspection and maintenance – every SilentAir™ Standard Composite Cabinet in our AM-SW series comes complete with a pre-wired one-gang duplex electrical box and 6 foot power cord to provide power to the enclosed cooling fan and aeration compressor
•SilentAir™ Series Aeration Compressor
The heart and soul of each AM-SW Aeration System, our powerful yet energy efficient SilentAir™ diaphragm compressors push oxygen through your pond while remaining whisper-quiet and costing as little as $ 3 a month in electricity running 24/7 – each SilentAir™ aeration compressor is fitted with an integrated air regulator to provide easy airflow-management and is mounted on vibration reducing rubber feet to ensure quiet operation
•ProAir™-2 Diffuser Plates
Designed for maximum oxygen uptake, our ProAir™-2 Diffuser Plates incorporate high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column – membrane diffusers posses the synergy of air stones without the headaches of cracking and acid-washing – our new non-stick Teflon coating prevents debris accumulation and performance reduction. A self-weighted black powder-coated steel base elevates the diffusers off of the pond bottom and out of muck and debris – combined with a one-piece air distributer and one-way check valve the ProAir™ diffuser plates truly provide maximum output with virtually no maintenance
•EasySet™ Self-Weighted Airline
Designed to stay submerged underwater and out of sight, our EasySet™ self-weighted airline is guaranteed not to float – a thick wall and lead-free construction make EasySet™ airline the perfect pond-safe choice – resistant to rips and tears, EasySet™ airline is resilient against fishing hooks and foot traffic from swimmers, pets and wildlife
Warranty
•3-year manufacturer’s limited warranty
IMPORTANT
•Watch for possible condensation buildup in the air tubing
•The Airmax SW20 Pond Aeration Systems must be installed a minimum of 12 inches above pond water level to prevent water from flowing back
•DO NOT SUBMERSE AIR PUMP !
•The Airmax SW20 Pond Aeration Systems must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet !
•The Airmax SW20 Pond Aeration Systems are not approved for use in swimming pools or salt water
Specifications
Airmax Part Numbers 600802 600803
Pond Size up to 1/.5 acre @ 16 ft. deep
Pond Depth 16 ft.
Maximum Air Flow Rate 2.5 CFM 2.5 CFM
Submersible no no
Maximum / Running Amps 0.5 A / 0.5 A 0.5 A / 0.5 A
Wattage 58 W 58 W
Voltage 120 V / 60 Hz. 120 V / 60 Hz.
Power Cord Length 6 ft. 6 ft.
Air Pump Dimensions
Air Stones (2) diffuser plates (2) diffuser plates
Length of Airline 100 ft. of 3/8″ self-weighted airline 200 ft. of 3/8″ self-weighted airline
Airmax PS20 2 Acre Pond Aeration System - 600832
Airmax PS20 2 Acre Pond Aeration System
For ponds up to 2 acres. The Airmax PS20 Pond Aeration System can be adapted to fit uniquely shaped ponds for maximum aeration.
Airmax PS20 2 Acre Pond Aeration System (600832) $2,499.99
200' Sink Tube - 2 diffuser bases ( 8 total diffusers )

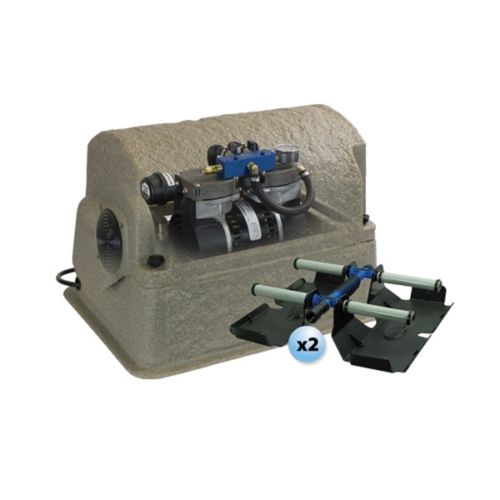

Complete with cabinet and double piston pump
Airmax PS20 2 Acre Pond Aeration System (600832)
The Airmax PS20 2 Acre Pond Aeration System is powerful enough to aerate ponds up to 2 acres and can be adapted to fit uniquely shaped ponds for maximum aeration. The Airmax PS20 2 Acre Pond Aeration System makes pond aeration a breeze.
Key Features
•SilentAir™ Standard Composite Cabinet
Our attractive composite cabinet houses and protects the SilentAir™ Compressor from outdoor elements – an integrated cooling system utilizes a UL-listed high-flow cooling fan and high-density air intake pre-filter to distribute air evenly throughout the cabinet keeping the interior components clean, cool and dry – an elevated base protects the aeration hardware and electrical components from flooding and rainwater accumulation while the removable top ensures quick and easy access for inspection and maintenance – every SilentAir™ Standard Composite Cabinet in our AM-SW series comes complete with a pre-wired one-gang duplex electrical box and 6 foot power cord to provide power to the enclosed cooling fan and aeration compressor
•SilentAir™ Series Aeration Compressor
The heart and soul of each AM-SW Aeration System, our powerful yet energy efficient SilentAir™ diaphragm compressors push oxygen through your pond while remaining whisper-quiet and costing as little as $ 12 a month in electricity running 24/7 – each SilentAir™ aeration compressor is fitted with an integrated air regulator to provide easy airflow-management and is mounted on vibration reducing rubber feet to ensure quiet operation
•ProAir™-4 Diffuser Plates
Designed for maximum oxygen uptake, our ProAir™-4 Diffuser Plates incorporate high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column – membrane diffusers posses the synergy of air stones without the headaches of cracking and acid-washing – our new non-stick Teflon coating prevents debris accumulation and performance reduction – a self-weighted base keeps the diffusers submerged at the pond bottom for optimal circulation – combined with a 4-way air manifold and one-way check valve the ProAir™ diffuser plates truly provide maximum output with virtually no maintenance
•EasySet™ Self-Weighted Airline
Designed to stay submerged underwater and out of sight, our EasySet™ self-weighted airline is guaranteed not to float – a thick wall and lead-free construction make EasySet™ airline the perfect pond-safe choice – resistant to rips and tears, EasySet™ airline is resilient against fishing hooks and foot traffic from swimmers, pets and wildlife.
Warranty
•2-year manufacturer’s limited warranty on compressor and electrical
•5-year manufacturer’s limited warranty on diffusers and airline
•Lifetime manufacturer’s limited warranty on cabinet
Pond Depth 21 ft.
Maximum Air Flow Rate 4.5 CFM
Submersible no
Maximum / Running Amps 5.3 A / 3.8 A
Voltage 120 V / 60 Hz.
Power Cord Length 6 ft.
Cabinet Dimensions 23″ L x 17″ W x 15″ H
Air Stones (2) diffuser plates
Length of Airline 200 ft. of 3/8″ self-weighted airline
Airmax PS40 3 Acre Pond Aeration System - 600842
Airmax PS40 3 Acre Pond Aeration System
For ponds up to 3 acres. The Airmax PS30 Pond Aeration System can be adapted to fit uniquely shaped ponds for maximum aeration.
Airmax PS40 3 Acre Pond Aeration System (600842) $3,249.99
300' of self-sink tube / and 3 diffuser plates (12 diffusers)
Airmax PS40 3 Acre Pond Aeration System (600842)
The Airmax PS40 3 Acre Pond Aeration System is powerful enough to aerate ponds up to 3 acres and can be adapted to fit uniquely shaped ponds for maximum aeration. The 3 plate Airmax PS40 3 Acre Pond Aeration System tackles larger water bodies up to 3 acres or ponds with an irregular shape that require precision plate placement for even circulation. The Airmax PS40 3 Acre Pond Aeration System makes pond aeration a breeze.
Key Features
•SilentAir™ Standard Composite Cabinet
Our attractive composite cabinet houses and protects the SilentAir™ Compressor from outdoor elements – an integrated cooling system utilizes a UL-listed high-flow cooling fan and high-density air intake pre-filter to distribute air evenly throughout the cabinet keeping the interior components clean, cool and dry – an elevated base protects the aeration hardware and electrical components from flooding and rainwater accumulation while the removable top ensures quick and easy access for inspection and maintenance – every SilentAir™ Standard Composite Cabinet in our AM-SW series comes complete with a pre-wired one-gang duplex electrical box and 6 foot power cord to provide power to the enclosed cooling fan and aeration compressor
•SilentAir™ Series Aeration Compressor
The heart and soul of each AM-SW Aeration System, our powerful yet energy efficient SilentAir™ diaphragm compressors push oxygen through your pond while remaining whisper-quiet and costing as little as $ 12 a month in electricity running 24/7 – each SilentAir™ aeration compressor is fitted with an integrated air regulator to provide easy airflow-management and is mounted on vibration reducing rubber feet to ensure quiet operation
•ProAir™-4 Diffuser Plates
Designed for maximum oxygen uptake, our ProAir™-4 Diffuser Plates incorporate high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column – membrane diffusers possess the synergy of air stones without the headaches of cracking and acid-washing – our new non-stick Teflon coating prevents debris accumulation and performance reduction – a self-weighted base keeps the diffusers submerged at the pond bottom for optimal circulation – combined with a 4-way air manifold and one-way check valve the ProAir™ diffuser plates truly provide maximum output with virtually no maintenance
•EasySet™ Self-Weighted Airline
Designed to stay submerged underwater and out of sight, our EasySet™ self-weighted airline is guaranteed not to float – a thick wall and lead-free construction make EasySet™ airline the perfect pond-safe choice – resistant to rips and tears, EasySet™ airline is resilient against fishing hooks and foot traffic from swimmers, pets and wildlife
Warranty
•2-year manufacturer’s limited warranty on compressor and electrical
•5-year manufacturer’s limited warranty on diffusers and airline
•Lifetime manufacturer’s limited warranty on cabinet
IMPORTANT
•Watch for possible condensation buildup in the air tubing
•The Airmax PS40 3 Acre Pond Aeration System must be installed a minimum of 12 inches above pond water level to prevent water from flowing back
•DO NOT SUBMERSE AIR PUMP!
•The Airmax PS40 3 Acre Pond Aeration System must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet!
•The Airmax PS40 3 Acre Pond Aeration System is not approved for use in swimming pools or salt water
