HomeSolar Powered Sub Surface Aeration & Solar Fountains
If Grid-Powered aeration is out of the question due to cost or location, Solar Aeration is a great alternative. We stock and supply several brands of Solar Aeration Systems.
Below you will find some helpful information on some of these along with pricing. Most kits can be customized if needed. Kits are available with or without solar panels. Normally ship in 1-3 weeks.

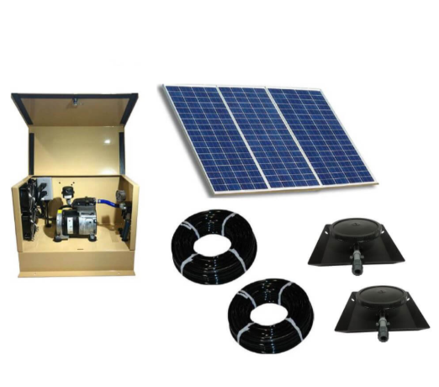

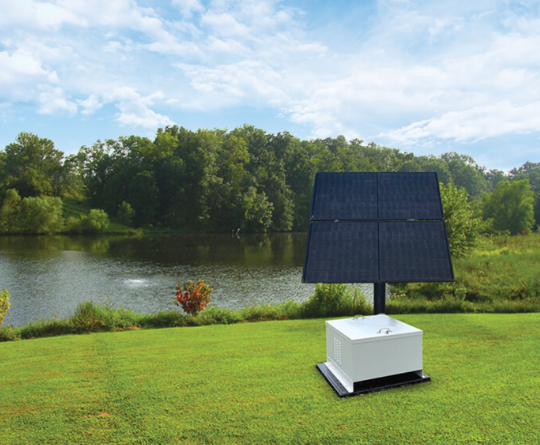

Deep Water Solar Aeration Systems by EasyPro
Designed for ponds and lakes, up to 4 acres and 35' deep. Deep Water Solar Aeration Systems utilize rocking piston compressors to deliver effective aeration to deeper water depths than other traditional solar systems.
These direct drive systems operate during daylight hours and are designed to start earlier, run later and even operate on moderately cloudy days, giving you more operating time. The results are much more total cfm of air delivered per day than other non-battery systems currently on the market.
NOTE** THESE SHIP MOTOR FREIGHT.
Warranty:
• Fifteen years on panels
• Five years on airline and diffusers
• Three years on compressor. (Excludes wearable items; piston cup,
valves, etc. Air filters must be cleaned or replaced every six months.)
• Lifetime warranty against rust on aluminum cabinet
Available in TWO Styles - Basic Systems and Deluxe System
Basic Systems Include
• High quality aluminum cabinet, in beige color, with two circulating fans
• Oil-filled pressure gauge and pressure relief valve
• Rocking piston compressor
• High output solar panels
• Pre-cut fabricated solar mounting racks for easier installation (purchase mounting poles locally)
Basic Kits
Pond CFM # of # of BUY IT NOW
Part # Description Size Air Solar Panels Valves Ship Weight Price

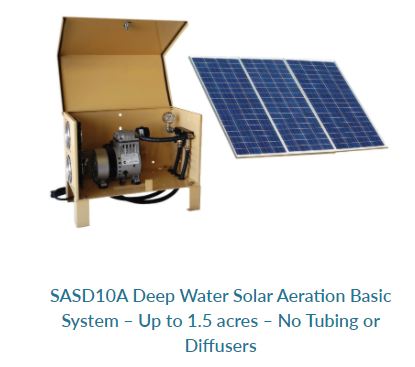

SASD10A* 1/4 hp Basic system up to 1.5 acres 2.2 3 2 180 lbs. $4994.99
SASD20A* 1/2 hp Basic system up to 2.5 acres 4.3 4 3 220 lbs. $5694.99
SASD30A* 3/4 hp Basic system up to 4 acres 6.0 6 4 280 lbs. $6594.99
*Tubing and diffusers not included in these basic kits. If you are suppling your own this kit is for your or you would order these separately. Or the Deluxe Kits below Come with Tubing.
Deluxe Kits
Pond CFM # of # of BUY IT NOW
Part # Description Size Air Solar Panels Diffusers Ship Weight Price
SASD12 1/4 hp Deluxe system up to 1.5 acres 2.2 3 2 300 lbs. $5549.99
SASD23 1/2 hp Deluxe system up to 2.5 acres 4.3 4 3 400 lbs. $6454.99
SASD34 3/4 hp Deluxe system up to 4 acres 6.0 6 4 520 lbs. $7565.99
Deluxe Systems Include:
• High quality aluminum cabinet, in beige color, with two circulating fans
• Oil-filled pressure gauge and pressure relief valve
• Rocking piston compressor
• High output solar panels
• Pre-cut fabricated solar mounting racks for easier installation (purchase mounting poles locally)
• QS2 Air Diffusers (See quantity per system below.)
• 100' of 1/2" Quick Sink weighted airline for each diffuser

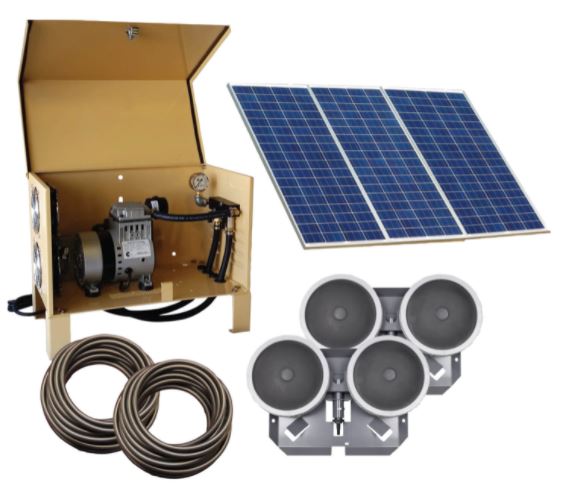

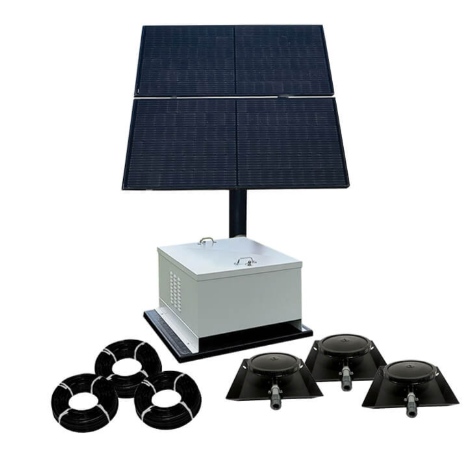

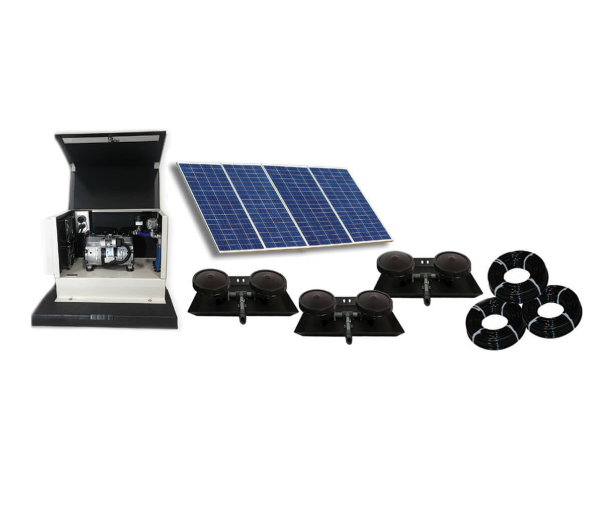

Example of included parts for the SASD23
Details
SASD23 Deep Water Solar Aeration Complete System -Up to 2.5 acres – Three QS2 diffusers and 300′ Quick Sink tubing
SASD23 system aerates up to 2.5 acres and includes:
1/2 hp rocking piston compressor rated for 4.3 cfm air flow
Powder coated, lockable aluminum cabinet, two cooling fans, pressure relief valve, oil-filled pressure gauge, and 3 valve manifold
Four solar panels with mounting racks (mounting poles purchased locally)
Will operate down to 35′ deep water
Three QS2 Quick Sink air diffusers
Three 100′ rolls of 1/2″ Quick Sink weighted tubing
Tubing and diffusers ship separately from other items
15 year warranty on solar panels
Lifetime warranty against rust on aluminum cabinet
5 year warranty on diffusers and tubing
3 year warranty on compressor (excludes wearable items: piston cup, valves, etc. Air filters must be cleaned or replaced every 6 months)
Shallow Solar Aeration Systems by EasyPro
Designed for ponds and lakes up to 12' deep. These “Direct Sunlight” systems operate when bright or sunny conditions exist.
• Complete kits are easy to install, quiet and dependable
• Designed for ponds up to 1.5 acres
• Each kit comes with powder coated, lockable steel cabinet, cooling fan, pressure gauge and all necessary fittings
• DC solar air compressors rated for 2.2 cfm air flow, will operate down to 12' deep water
• Battery Free System - eliminates the expense of rechargeable batteries and controllers making these systems much more affordable
• 5' galvanized steel mounting pole included
• Warranty — Fifteen years on panels; five years on airline and diffusers; two years on compressor.
These solar aeration systems feature a compressor that offers the best mix of airflow, pressure and
low power consumption that allow these systems to operate over a wide range of conditions.
‘SAS’ Systems Include
• Solar panels with mounting bracket
• Compressor
These solar aeration systems feature a compressor that offers the best mix of airflow, pressure and
low power consumption that allow these systems to operate over a wide range of conditions.
‘SAS’ Systems Include
• Solar panels with mounting bracket • Compressor, Cooling Fan, Adjustable Valve / Manifold, Diffusers*, Cabinet, Tubing*, and Mounting Pole.
Compressors Diffusers 100' Roll 1/2" Solar Panels Ship Price
Part # Description Included Included Weighted Tubing Included Weight Each
SAS75 Solar aeration kit, up to 3/4 acre 1 1 1 2 200 lbs. $3159.99

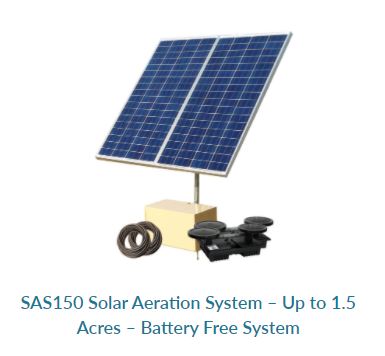

SAS150 Solar aeration kit, up to 1.5 acres 1 2 2 2 250 lbs. $3559.99
Example of SAS75 Kit:
SAS75 Solar Aeration System – Up To 3/4 Acre – Battery Free System
SAS75 system aerates up to 3/4 acre and includes:
One Solar Panel with 5′ galvanized steel mounting pole and mounting hardware
Powder coated, lockable steel cabinet, cooling fan, pressure gauge and adjustable manifold
One DC solar air compressor rated for 2.8 cfm air flow
Will operate down to 15′ deep water
One air diffuser
One 100′ roll 1/2″ weighted tubing
Tubing and diffusers ship separately from other items
5 Year Warranty on panels, airline and diffuser(s)
2 Year warranty on all components and compressors

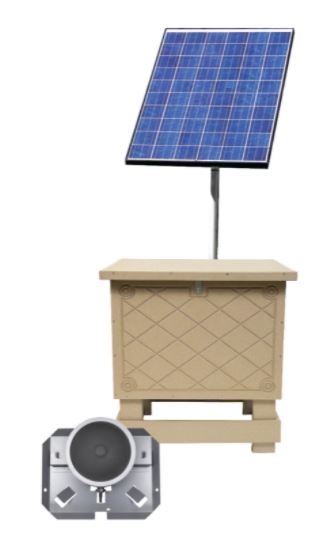

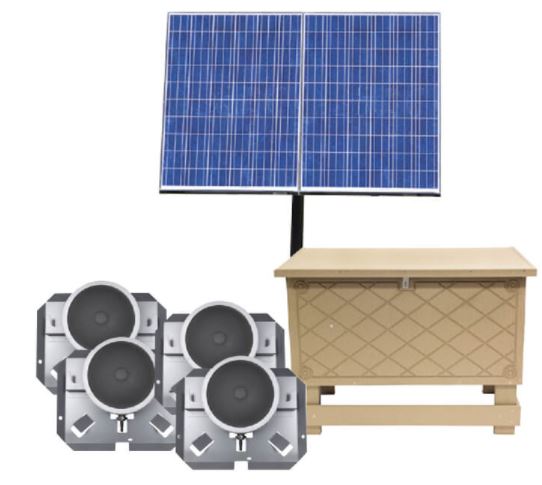

Solar Aeration Systems with Battery Back up by EasyPro
These solar powered, battery backup aeration systems are great for remote or off the grid applications.
The energy efficient design allows them to be deployed anywhere and provide all of the benefits of a standard
aeration system without the need for power. These kits feature a sound reduction package making them extremely quiet.
The battery back up enables the system to run at night or during extended periods of poor weather.
Designed to operate 20 hours per day and has enough battery capacity to run the system up to three days without any solar input.
Systems Include
• Solar panels with pole mounting bracket
• Specially designed, energy efficient compressor
• High volume cooling fan
• Fully adjustable aluminum manifold
• 100% recycled plastic cabinet
• Batteries
• Order “Quick Sink” tubing and equipment pad separately (not included in kit)
• Diffusers ship separately from systems
Part # Description Ship Weight Price
SPA-1N Solar aeration kit, up to one acre (tubing and equipment pad not included) 450 lbs. $6425.99
SPA-2N Solar aeration kit, up to two acres (tubing and equipment pad not included) 500 lbs. $6558.99
SPA-3N Solar aeration kit, up to three acres (tubing and equipment pad not included) 850 lbs. $12,815.99
SPA-4N Solar aeration kit, up to four acres (tubing and equipment pad not included) 935 lbs. $12,955.99
L5PVC1* 1/2" Quick Sink Tubing, 100' box (ships separately) 44 lbs. $179.99
L5PVCR* 1/2" Quick Sink Tubing, 500' reel (ships separately) 245 lbs. $869.99
SPA-MP Equipment pad for SPA-1N & SPA-2N, 30" x 30" x 3" thick 15 lbs. $168.00
SPA-LP Equipment pad for SPA-3N & SPA-4B, 30" x 42" x 3" thick 20 lbs. $215.00

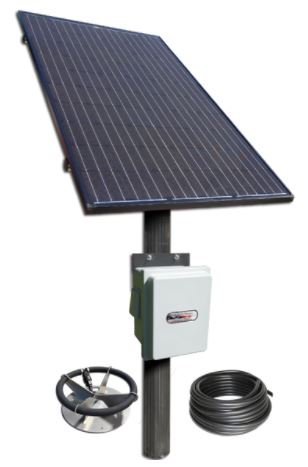

US Solar Mounts SD-1 Aeration Kit
The SD-1 Solar Aerator will efficiently aerate ponds up to 1 acre.
Made with high-quality, American-Made components, the SD-1 provides low-maintenance, high-volume Solar Aeration on any site. No batteries, AC wiring, or electrician are needed, saving you time and money. A brushless compressor offers over 3 times the system life of brushed permanent magnetic motors.
A Few SD-1-PM Features:
2.8 CFM @ 10 PSI
High-E Rocking Piston Compressor
Low-Light Operation - Runs with as little as 6% Sunlight
Very EASY & FAST installation
Extremely Quiet - less than 65db @6'
Pole-Mount Enclosure, Backpanel & Hardware
High-Flow enclosure ventilation
Fiberglass Reinforced Enclosure will never rust
High-Efficiency Digital Motor Controller
Intake filter/silencers with replaceable filter cartridges
Industry Exclusive Standard 5-year Warranty on all non-wearable parts
Dramatically increased daily run hours
Rated depth of 30'+
300-Watt Full-Size 60-Cell Solar Module (39"x65")

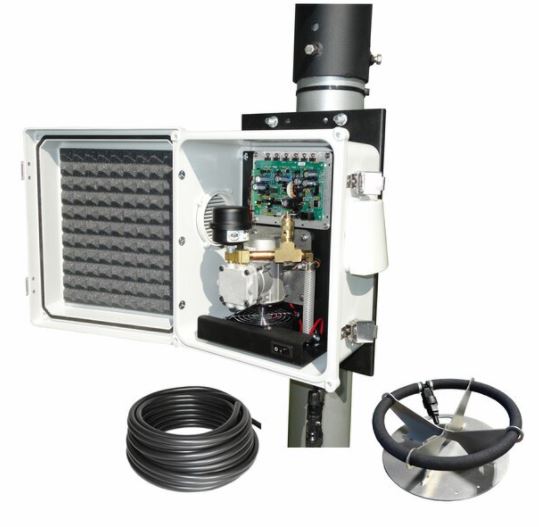

The SD-1-PM kit includes:
Complete compressor/control system
(1) 60-Cell Solar Module & Adjustable Pole-Top Mount
Pole mount enclosure with mounting hardware
(1) DB36 Diffuser
(1) 100' x 3/8" Weighted Hose
PV Cables
Easy to Follow Instructions
Full TECH SUPPORT
Standard 5-year Warranty on all non-wearable parts
Should you add a second panel?
The SD-1 package comes with a single 60-Cell solar panel. This panel provides approximately 2x the power required by the compressor for full-speed operation under even moderate lighting conditions. Many (if not most) customers choose to add a 2nd module to SD-1 & SD-2 systems that must operate during periods of very low light and/or possible snow cover. The additional panel will not change the operation of the compressor on a sunny day, but extends the run time quite dramatically during times of low light and cloudy weather. Adding a 2nd panel will allow an SD-1 or SD-2 aerator to run very well during very dark, overcast conditions - even during rain or snowfall.
Customer supplies a 3" (3.5" OD) SCH40/SCH80 steel mounting pole. POLE NOT INCLUDED.
BUY IT NOW $4,959.99
SKU: SD-1-PM KIT
UPC: 752505798622

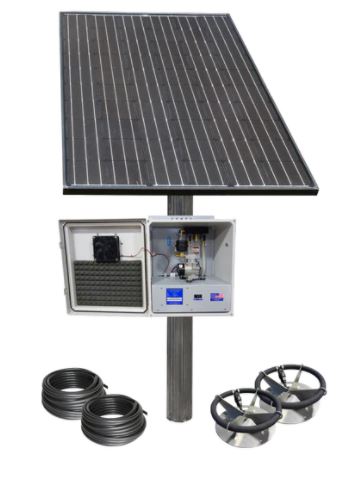

The SD-2-PM Solar Aerator will efficiently aerate ponds up to 2.5 acre. Powered entirely by the Sun! Made with high-quality, American-Made components, the SD2 provides low-maintenance, high-volume Solar Aeration on any site. No batteries, AC wiring, or electrician are needed, saving you time and money. A brushless compressor offers over 3 times the system life of brushed permanent magnetic motors.
A Few SD-2-PM Features:
High-E Rocking Piston Compressor
Low-Light Operation - Runs with as little as 6% Sunlight
Very EASY & FAST installation
Extremely Quite - less than 65db @6'
Pole-Mount Enclosure
High-Flow enclosure ventilation
Fiberglass Reinforced Enclosure will never rust
High-Efficiency Digital Motor Controller
Intake filter/silencers with replaceable filter cartridges
Industry Exclusive Standard 5-year Warranty on all non-wearable parts
Dramatically increased daily run hours
Rated depth of 30'+
300-Watt Full-Size 60-Cell Solar Module (39"x65")
The SD-2-PM kit includes:
Complete compressor/control system
(1) 60-Cell Solar Module & Adjustable Pole-Top Mount
Pole mount enclosure with mounting hardware
(2) DB36 Diffuser
(2) 100' x 3/8" Weighted Hose
PV Cables
Easy to Follow Instructions
Full TECH SUPPORT
Standard 5-year Warranty on all non-wearable parts
Should you add a second panel?
The SD-2 package ships with a single 60-Cell solar panel. This panel provides approximately 2x the power required by the compressor for full-speed operation under even moderate lighting conditions. Many (if not most) customers choose to add a 2nd module to SD-1 & SD-2 systems that must operate during periods of very low light and/or possible snow cover. The additional panel will not change the operation of the compressor on a sunny day, but extends the run time quite dramatically during times of low light and cloudy weather. Adding a 2nd panel will allow an SD-1 or SD-2 aerator to run very well during very dark, overcast conditions - even during rain or snowfall.
Customer supplies a 3" (3.5" OD) SCH40/SCH80 steel mounting pole.
BUY IT NOW $5,389.99
SKU: SD-2-PM PACK
UPC: 752505798639
The SD-4-PM Solar Aerator will efficiently aerate ponds up to 5 acres. T
The SD-4 is a beast and is powered entirely by the Sun! Made with high-quality, American-Made components, the SD-4 provides Enhanced Performance, low-maintenance, high-volume Solar Aeration on any site. No batteries, AC wiring, or electrician are needed, saving you time and money. Brushless compressors offers over 3 times the system life of brushed permanent magnetic motors.
A Few SD-4-PM Features:
5.6 CFM Output @ 10PSI
DUAL High-E Rocking Piston Compressor
Low-Light Operation - Starts up with as little as 6% Sunlight
FULL OUTPUT is reached with only 10% Sunlight
Very EASY & FAST installation
Extremely Quite - less than 67db @6'
Pole-Mount Enclosure
Ultra High-Flow enclosure ventilation
Fiberglass Reinforced Enclosure will never rust
DUAL High-Efficiency Digital Motor Controllers
DUAL Intake filter/silencers with replaceable filter cartridges
Industry Exclusive Standard 5-year Warranty on all non-wearable parts
Dramatically increased daily run hours
Rated depth of 30'+
300-Watt Full-Size 60-Cell Solar Module (39"x65")

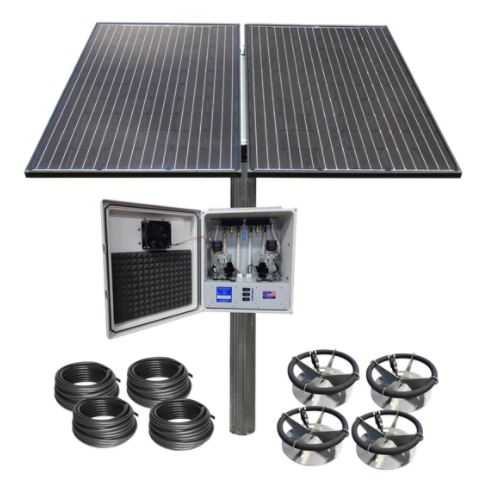

The SD-4-PM kit includes:

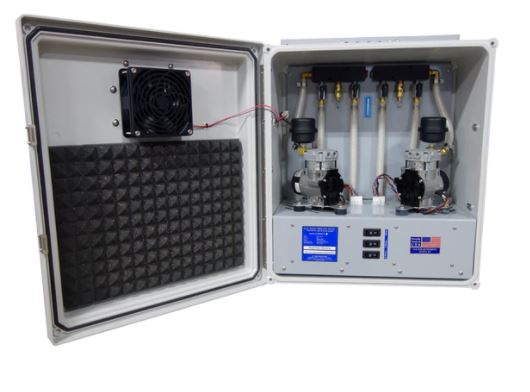

Complete DUAL compressor/control system
(2) 60-Cell Solar Module & Adjustable Pole-Top Mount
Pole mount enclosure Backpanel & hardware
(4) DB36 Diffuser
(4) 100' x 3/8" Weighted Hose
PV Cables & PV Combiner
Easy to Follow Instructions
Full TECH SUPPORT
Standard 5-year Warranty on all non-wearable parts
Customer supplies a 3" (3.5" OD) SCH40/SCH80 steel mounting pole.
BUY IT NOW $8,399.99
SKU: SD-4-PM KIT
UPC: 752505798653

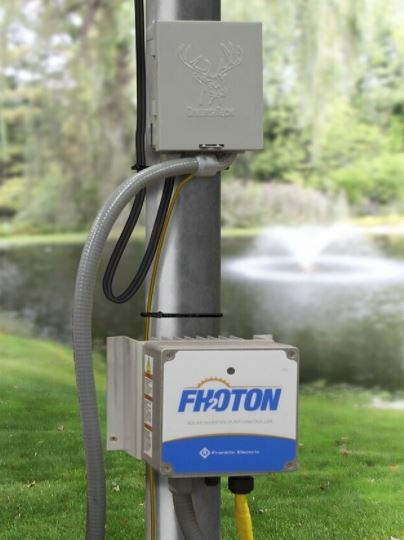

Have a large pond with no electricity source?
Our Solar Boilermaker Aerator with variable-speed, submersible induction Franklin Electric motor moves up to 300 gallons per minute.
One of the most environmentally friendly water aerators on the market, the Boilermaker was designed to minimize water display and maximize pond health. Its low-profile design and submersible, solar-powered motor create high-volume water circulation for maximum oxygen transfer. This added oxygen not only does wonders for your fish, it's also key to rapidly breaking down decaying matter at the bottom of your pond. And more oxygen means less muck over time. Meanwhile, the Boilermaker's powerful surface currents eliminate surface algae and floating debris quickly.
Made for daytime aeration, the unit powers up with the sun, operates at variable speeds, and shuts down after dark. Its solar PV array panels bring water flow gradually up to capacity in variable sunlight—all without the costly, high-maintenance batteries that many solar aerators demand. Its motor is stainless steel and oil-free, making it exceptionally durable and maintenance-free.
To top it all off, the Boilermaker works great as a pond de-icer in winter, too. The Boilermaker was engineered to eliminate the need for costly, time-consuming winterizing products and procedures. Simply leave your aerator in the water, turn off its power supply, and forget about it until the water thaws in the spring. Then just re-establish power to the unit and you’re good to go. All components will withstand sub-zero conditions without damage.
This simple-to-install system comes complete with the Boilermaker aerator, four solar panels with frame, disconnect box, Fhoton™ drive solar inverter, and all required wiring components. You just need to supply the pole for the panels and frame, concrete footing for the pole, and two anchor ropes with weights or tethers for the aerator.
The Boilermaker is proudly manufactured in the USA and carries an unconditional, 5-year motor warranty. This unit comes standard with 150 feet of heavy-duty, 12-gauge, submersible power cord.
The Boilermaker solar aerator is designed for fresh or salt water. Please disconnect power source when swimmers are present.
Specifications
300 gallons-per-minute flow rate.
Motor specs: 100 volt, three-phase, 60 Hz, 8.6 amps and 810 watts.
Each solar panel measures 24" x 36".
12-gauge, submersible electric cable provided is 150 feet in length.
5-year motor warranty.
No maintenance required.
32” minimum pond depth required.
Two 30-pound weights or concrete blocks required for anchoring (not included).
SKU: SOLAR-BOILERMAKER w/ 150' CORD
UPC: 655003856200
Availability: Ships in 2-3 business days.
Solar Array: 4-Panel, Ground Mount
Shipping:: FREE Shipping to Lower 48

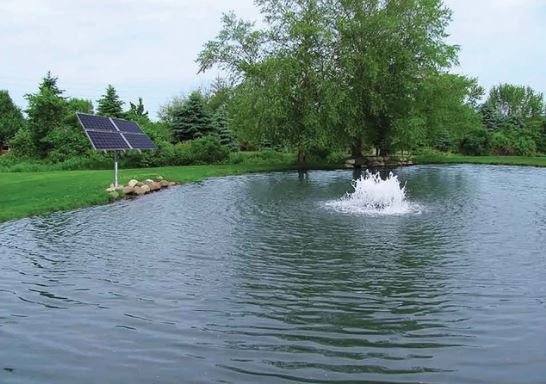

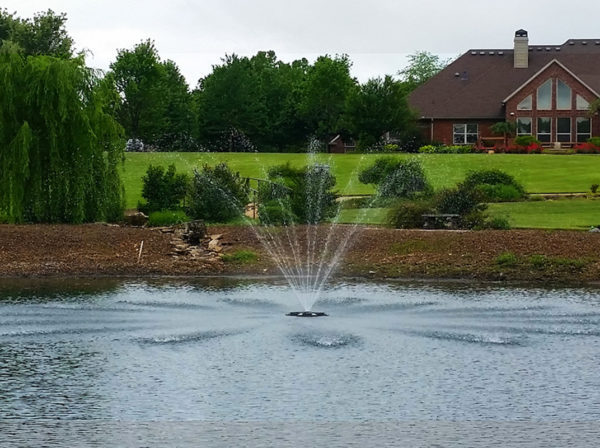

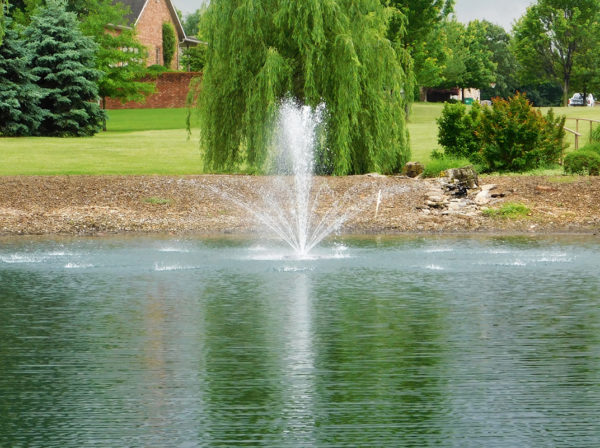

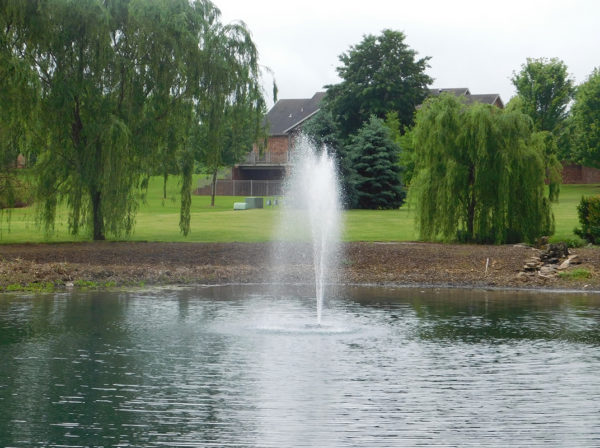

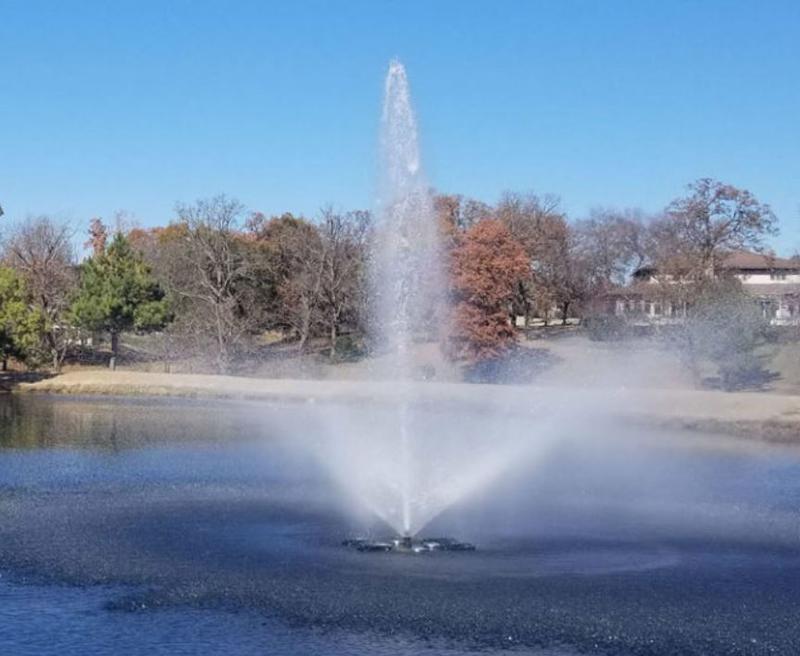

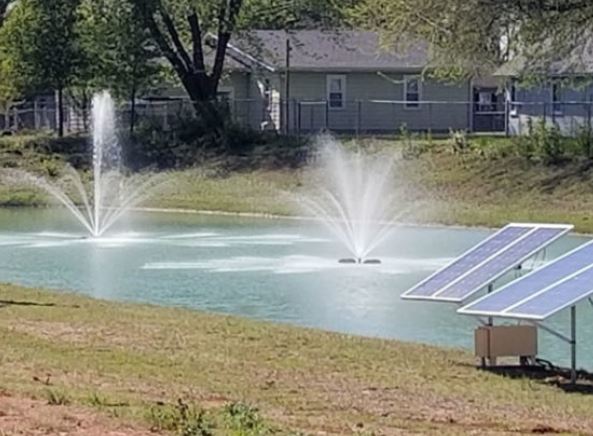

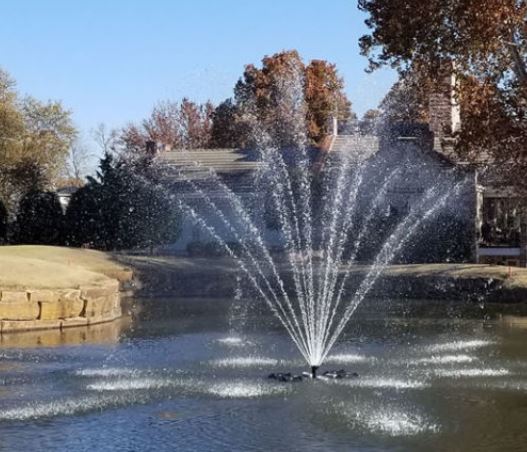

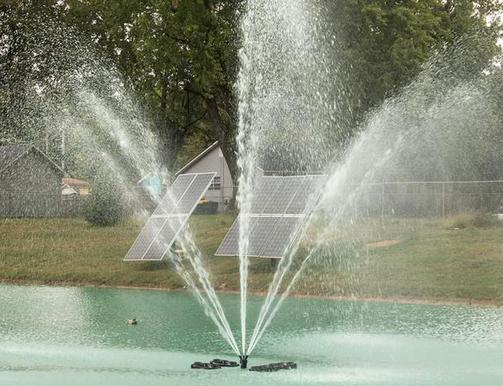

SOLAR Powered Floating Pond or Lake Fountains
Available in various Horsepower rating below.
If you’re looking for a fountain and don’t have ready access to power or just want to operate using solar power instead of electricity, then you need one of our new solar powered fountains. We use a state of the art controller to convert the sun’s DC power to AC power to run the fountain. This is a direct drive system which means it will run during the daylight hours.
We Offer A 15-Year Warranty
We Teamed Up With Experts In The Field Of Solar Panels to design our solar powered fountains. We experimented with different materials and components and have designed these to last the longest of all solar fountains that will come to the market, that is why we offer a 15-year warranty, the longest in the industry, on the solar panel components. The six solar panels are made of monocrystalline materials, meaning that the panels take up less space and have the highest efficiency rates compared to a system of polycrystalline solar panels.
Your new floating solar pond fountain will also come with your choice of up to five nozzle patterns, based on the size of the Elite solar fountain chosen. For the 3HP model, the fountain will come with the Nebula, Spectrum, Orion, and Sirius patterns. The 1 ½ HP and ¾ HP model will come with the Nova, Equinox, Neutron, and Jupiter nozzle patters. To see pictures of these nozzle patterns or to see performance specs just contact us. The beauty of the nozzle variations will enhance the enjoyment of the water feature and will make your lake or pond a statement piece on your property!
Making It Easy To Assemble & Maintain
Offering Top Key Features
Other features to look forward to include cable-quick disconnects for easy winterizing and maintenance upkeep. You’ll find that our stainless steel, submersible motors are oil-free, making them exceptionally durable, low maintenance, and environmentally friendly as well. The floatation device also has a low-profile appearance and also has a high-strength stainless steel frame. It is easy to assemble and is guaranteed a 5-year warranty.
Included Items:
Your choice of a ¾ HP, 1 ½ HP, or 3 HP fountain with pump and motor
High-density polyethylene floats with UV protection
High-quality nozzle heads
Power cables ranging in length from 50’ to 250’ in length - Standard Lengths included in each description below.
UL listed aluminum weatherproof cabinet with Direct Drive™ solar controller
Proudly manufactured in the USA, our line of Solar Fountains are designed for long-term use in fresh or salt water.
Up first is the Classic™ Series Line of Solar Floating Fountains
These fountains are constructed using high quality pumps, motors and controllers designed to operate when others will not. Through our intense product testing, we provide the most efficient technology available allowing for more run time than others systems on the market.
Benefits of Solar
Eco friendly by operating with sun with no batteries to maintain and dispose of.
Saves cost by not running power cable and paying a monthly bill
Designed for Off Grid applications
Direct Drive Controller allows system to operate in lower light
High output solar panels
Pre-cut fabricated solar mounting racks to make installation easier
Includes quick disconnects to make assembly much easier
Customer will need to purchase mounting poles locally
1/2 HP Classic Series Fountain - BUY THIS NOW for $4,995.00
Includes:
4 High Quality 36V Solar Panels
Custom Designed Panel Racking
State of the Art Solar Controller
Quick Connect Wiring to Connect Panels to Controller
32” High-Quality Black Molded Float with UV Protection
½ HP Maxis™ Pump with 100’ Power Cord
Each Fountain Includes 4 Different Nozzle Patterns so you can choose the Pattern you like.
Includes High-Quality Filter Basket to Protect Pump & Motor
Product Benefits:
Easy installation
Works in fresh, salt or brackish water
Works in both lined and natural dirt ponds
Only needs a minimum of 36” of water to operate
Weight - 240 lbs. Shipped.
Warranty:
2 Year Warranty on fountain pumps and motors
2 Year Warranty on the solar controller
5 Year Warranty on fountain floats
15 Year Warranty on solar panels
Everything is included except for two mounting poles and a bag of Quickrete. We’ll provide the specs for the two poles to be purchased locally for installation.
Perfect for ponds as small as 30′ across to as large as an acre in size! You get your choice of four different display patterns (all included at no extra charge).
1 HP Solar Classic Series Fountain - BUY THIS NOW for $6,995.00
Includes:
6 High Quality 36V Solar Panels
Custom Designed Panel Racking
State of the Art Solar Controller
Quick Connect Wiring to Connect Panels to Controller
32” High-Quality Black Molded Float with UV Protection
1 HP Maxis™ Pump with 100’ Power Cord
Each Fountain Includes 4 Different Nozzle Patterns so you can choose the Pattern you like. (Scroll down to see all four patterns).
Includes High-Quality Filter Basket to Protect Pump & Motor
Product Benefits:
Easy installation
Works in fresh, salt or brackish water
Works in both lined and natural dirt ponds
Only needs a minimum of 36” of water to operate
Warranty:
2 Year Warranty on fountain pumps and motors
2 Year Warranty on the solar controller
5 Year Warranty on fountain floats
15 Year Warranty on solar panels
Everything is included except for two mounting poles and a bag of Quickrete. We’ll provide the specs for the two poles to be purchased locally for installation. Typically a SCH 40 Pole.
Perfect for ponds as small as 30′ across to as large as an acre in size! You get your choice of four different display patterns (all included at no extra charge).
UP Next are the Elite Line of Solar Floating Fountains
Featuring Direct Drive™ Solar Controllers
The new Elite line of solar-powered floating fountains features eco-friendly, high-quality pumps and motors with industry-leading control panels that feature Direct Drive™ solar controllers designed for optimal run time.
These solar floating pond fountains are available in three different sizes. They are designed to work in ponds from as small as a ¼ acre up to 5+ acres in size. They do not need nor require electricity and instead rely 100% on solar energy to operate!
One of the most important components of the solar fountains are their highly efficient monocrystalline solar panels and the Direct Drive™ solar controller operating system. A Direct Drive™ system ensures that the motor has less moving parts to tremendously increase the efficiency of the system, thus creating a quieter and highly dynamic operation. As a result, this leads to a longer lifetime of the motor and other internal parts. We chose the Direct Drive™ solar panel system because it also allows the system to run well in various sunlight conditions, so you don’t have to worry about lower efficiency during overcast or cloudy days.
SFTN504 - 0.75 hp, - Price - $10,325.00
SFTN505 - 1.5 hp, - Price - $11,825.00
TO BUY NOW just give us a call ( 214)-529-9656 or send us an email.
Prices above will come with:
Each system comes with 150’ of cable and choice of nozzle. ** Customizable with shorter or longer lengths - just request a quote here.
Customer must provide mounting pipes for panel racking:
3/4hp kit has 6 Panels
Comes with a PM-6 rack for the 6 panels which will require a 245” crossbeam.
You will need 2 vertical pipes to hold the crossbeam.
1 1/2hp kit has 8 Panels
Comes with (2) PM-4 rack for the 8 panels which will require (2) 165” crossbeams.
You will need 1 vertical pipe to hold EACH crossbeam.
You will be using 4” nominal, 4.5” O.D. schedule 40 (.225”) steel pipe for both the vertical main pipe and horizontal cross beam.
The main vertical pipe length can vary depending on soil, desired height, and ability to landscape underneath panels.
On average, the pipes measure 7’ with 3’ in the ground.
