HomeWind Driven Aerators, Let Mother Nature aerate your pond!
Below are a few of the Windmill Aeration Kits we offer - Fully Customizable!
Windmill aerators can save $30-$50 per month in electric costs, paying for themselves in
a few short years. Ideal for aerating remote ponds with no electricity nearby.
• Stable, four leg design
• Long-lasting, reinforced neoprene diaphragm
• 6' diameter head with 12 blades operates in wind as low as five miles per hour
• Produces 2.4-5 cfm (depending on air speed) for ponds up to 40' deep
• Over speed protection — tail section will turn head in high winds preventing overspinning
• Includes 48" long anchor stakes
• NEW FOR 2020! Hinge kits included with 16' and 20' units
• Can effectively aerate ponds up to two acres depending on shape and depth
• Windmills can sit up to 1000' away from pond’s edge.
Five Year Limited Warranty
Windmill Kits - include 50' of poly tubing, 100' of Quick Sink tubing and dual head Quick Sink diffuser.
Overall Base Ship
Part # Description Height Stance Weight (lbs.) Price

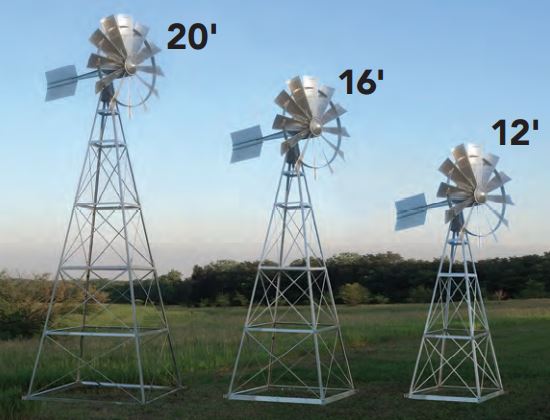

BWM12W 12' four legged Becker Windmill kit 15' 4'-4" sq 54, 75, 11, 58, 2@49, 16 $2959.99
BWM16W 16' four legged Becker Windmill kit 19' 5'-8" sq 54, 75, 11, 58, 2@49, 43, 16 $3159.99
BWM20W 20' four legged Becker Windmill kit 23' 7'-0" sq 54, 75, 11, 58, 3@49, 43, 16 $3259.99
BWM20DLX 20' four legged Becker Deluxe Kit* 23' 7'-0" sq 54, 75, 11, 58, 4@49, 43, 5, 25 $3489.99
• Deluxe Kit contains 2-way splitter, 50' poly, 200’ Quick Sink tubing and 2 single head Quick Sink diffusers
Windmill Only - customize with diffusers and tubing (sold separately)
Overall Base Ship
Part # Description Height Stance Weight (lbs.) Price
BWM12 12' four legged Becker Windmill 15' 4'-4" sq 54, 75, 11, 58, 49 $2359.99
BWM16 16' four legged Becker Windmill 19' 5'-8" sq 54, 75, 11, 58, 49, 43 $2459.99
BWM20 20' four legged Becker Windmill 23' 7'-0" sq 54, 75, 11, 58, 2@49, 43 $2559.99
Already have a Windmill Tower or Want to build your own?
• The Units below are available in a kit that includes tubing and diffuser(s), or as head only.
• Long-lasting, reinforced neoprene diaphragm
• 6' diameter head with 12 blades operates in wind as low as five miles per hour
• Produces 2.4-5 cfm (depending on air speed) for ponds up to 40' deep
• Over speed protection — tail section will turn head in high winds preventing over spinning
• Can effectively aerate ponds up to two acres depending on shape and depth
• Windmills can sit up to 1000' away from pond’s edge.
Windmill Head Kit Includes
• Functional head • QS2 Diffuser • Fittings
• 50' poly tubing • 100' of 1/2" Quick Sink tubing
Five Year Limited Warranty
Part # Description Height Weight (lbs.) Price
BWMH Functional windmill head 72" dia 54, 75, 11 $1799.99
BWMHW Functional windmill head kit 72" dia 54, 75, 11, 49, 16 $1939.99
Windmill Freeze Control
• Recommended whenever the windmill is located away from the pond’s edge • If the line starts to freeze, the control
valve opens and feeds ethanol alcohol (or rubbing alcohol) into the line to melt the ice, the valve then closes and normal operation resumes.
Part # Ship Weight Price
WMFC 6 lbs. $134.99

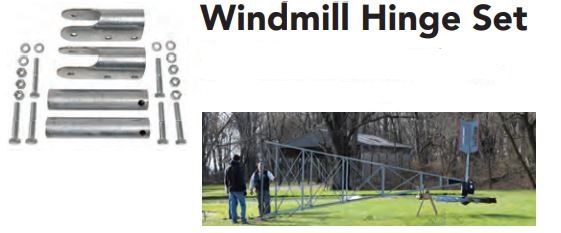

Windmill Hinge Set
Hinges install at the base for easier installation. Also useful to lower tower for future maintenance or impending storms.
Part # Ship Weight Price
BWHS 3 lbs. $45.99
More Windmill Parts & Accessories Stocking Ship
Part # Description Weight (lbs.) Price
WD1 Aeration Accessory Kit - 50' poly tubing, QS2 diffuser, clamps and tubing connector 16 $208.49
WD2 Aeration Accessory Kit - 50' poly tubing, 2 - QS1 diffusers, 2 way splitter and clamps 25 $329.59
L5PVC1 1/2" ID X 1" OD - Quick Sink PVC Hose - 100' Roll Boxed 44 $179.99
